Trailed & 3 point linkage land rollers
-83010 8ft - £1795 +VAT (3PL)
-93612 9ft - £2780
-103010 10ft - £2250
-103010T 10ft - £3370 (tandem)

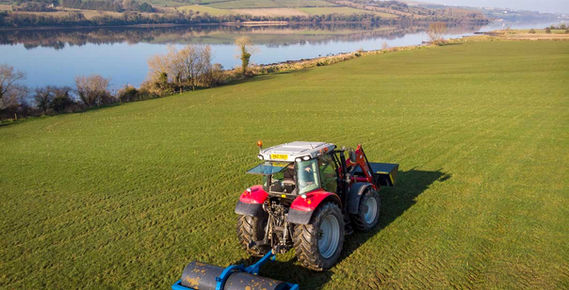

Fleming Agri Products have a wealth of technical experience with rollers, spanning over 40 years. As a result the ballast rollers are robust and easy to use. The trailed & mounted land rollers are ideal for medium size farms and have the option of use with the tandem lead roller for larger operations.
Depending on the model, the trailed rollers have10mm, 12mm or 16mm wall thickness. These rollers are available in 8ft (2.5m), 9ft (2.7m) or 10ft (3m) working widths.
Features :
-
All drums are air tested
-
Fitted with hardwood bearings for long life and low maintenance
-
Can be water filled for extra weight and transported fully laden
-
Strong structural box section frame with over channel support
-
Pick up eye and shoe rest as standard on all models
-
Options
-
Scraper blade
Specifications
83010
Rolling width 2420mm
Overall width 2620mm
Drum diameter 740mm
Drum thickness 10mm
Centre shaft diameter 65mm
Unladen weight 685kg
Laden weight 1730kg
93612
Rolling width 2740mm
Overall width 2950mm
Drum diameter 885mm
Drum thickness 12mm
Centre shaft diameter 75mm
Unladen weight 1075kg
Laden weight 2780kg
103612
Rolling width 3000mm
Overall width 3220mm
Drum diameter 885mm
Drum thickness 12mm
Centre shaft diameter 75mm
Unladen weight 1000kg
Laden weight 2866kg
83012
Rolling width 2420mm
Overall width 2620mm
Drum diameter 745mm
Drum thickness 12mm
Centre shaft diameter 65mm
Unladen weight 775kg
Laden weight 1890kg
93616
Rolling width 2740mm
Overall width 2950mm
Drum diameter 890mm
Drum thickness 16mm
Centre shaft diameter 75mm
Unladen weight 1180kg
Laden weight 2885kg
103010T
Rolling width 3000mm
Overall width 3340mm
Drum diameter 740mm
Drum thickness 10mm
Centre shaft diameter 75mm
Unladen weight 1170kg*
Laden weight 4450kg
* excluding existing roller
83612
Rolling width 2420mm
Overall width 2620mm
Drum diameter 885mm
Drum thickness 12mm
Centre shaft diameter 75mm
Unladen weight 970kg
Laden weight 2490kg
103010
Rolling width 3000mm
Overall width 3220mm
Drum diameter 740mm
Drum thickness 10mm
Centre shaft diameter 75mm
Unladen weight 883kg
Laden weight 2170kg
