Fleming Hydraulic Transport Boxes
HYD4C 4' £795 +VAT (compact)
HYD5C 5' £825 +VAT (compact)
HYD5 5' £825 +VAT
HYD6 6' £885 +VAT
HYD66 6'6'' £940 +VAT
HYD7 7' £1054 +VAT

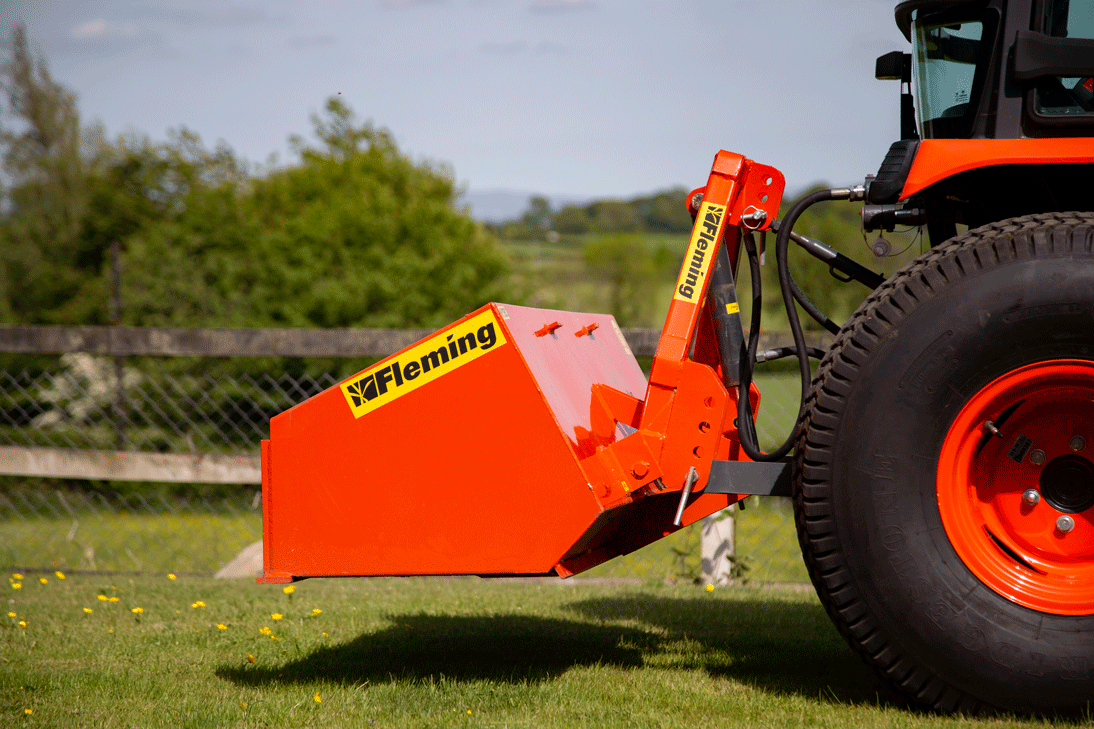

Fleming Agri manufacture 2 models of compact hydraulic transport boxes. The compact hydraulic transport box has a robust and durable steel construction. As a result they are suitable for all compact and sub compact tractors. The compact hydraulic transport boxes are ideal for mucking out and levelling for example. The compact hydraulic transport box has Cat. 1 linkage and is suitable for tractors up to 50hp.
Features :
-
Solid construction from 3mm reinforced steel plate
-
Robust hydraulic loading & tipping hitch mechanism
-
Heavy duty double acting ram
-
Range of 3pl settings to suit most tractors
-
Double jaw lift arm pin support
-
Cat 1 lift pins supplied
-
Scraping blade fitted to the heel of the box to further add strength to the rear of the box, giving it the capability of grading and levelling
-
Internal reinforcing shoes with smooth rounded edges to create a solid back plate to absorb the force of the tractor and allow for easy unloading/cleaning
Specifications
HYD5
Weight 267kg
Width 1510mm
Height 610mm
Depth 930mm
Capacity 0.54m3
Max HP80
Body thickness 5mm
Linkage Cat. 2
HYD7
Weight 380kg
Width 2170mm
Height 610mm
Depth 930mm
Capacity 0.78m3
Max HP130
Body thickness 6mm
LinkageCat. 2
HYD6
Weight 296kg
Width 1830mm
Height 610mm
Depth 930mm
Capacity 0.66m3
Max HP 100
Body thickness 5mm
LinkageCat. 2
HYD4C
Weight 129kg
Width 1260mm
Height 510mm
Depth 640mm
Capacity 0.34m3
Max HP50
Body thickness 3mm
LinkageCat. 1
HYD66
Weight 311kg
Width 2000mm
Height 610mm
Depth 930mm
Capacity 0.72m3
Max HP100
Body thickness 5mm
LinkageCat. 2
HYD5C
Weight 140kg
Width 1510mm
Height 510mm
Depth 640mm
Capacity 0.43m3
Max HP55
Body thickness 3mm
LinkageCat. 1
